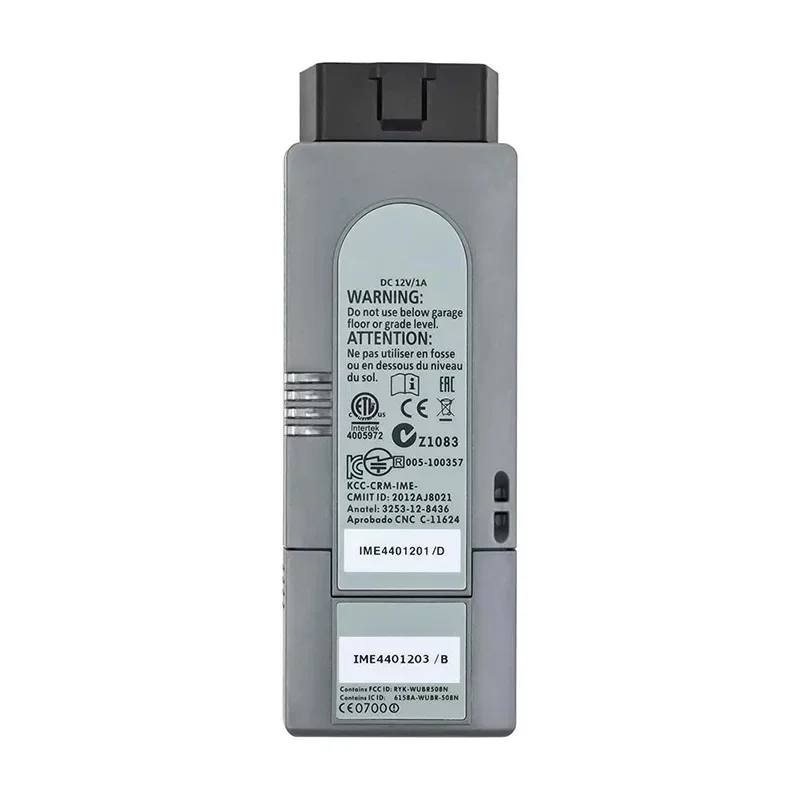

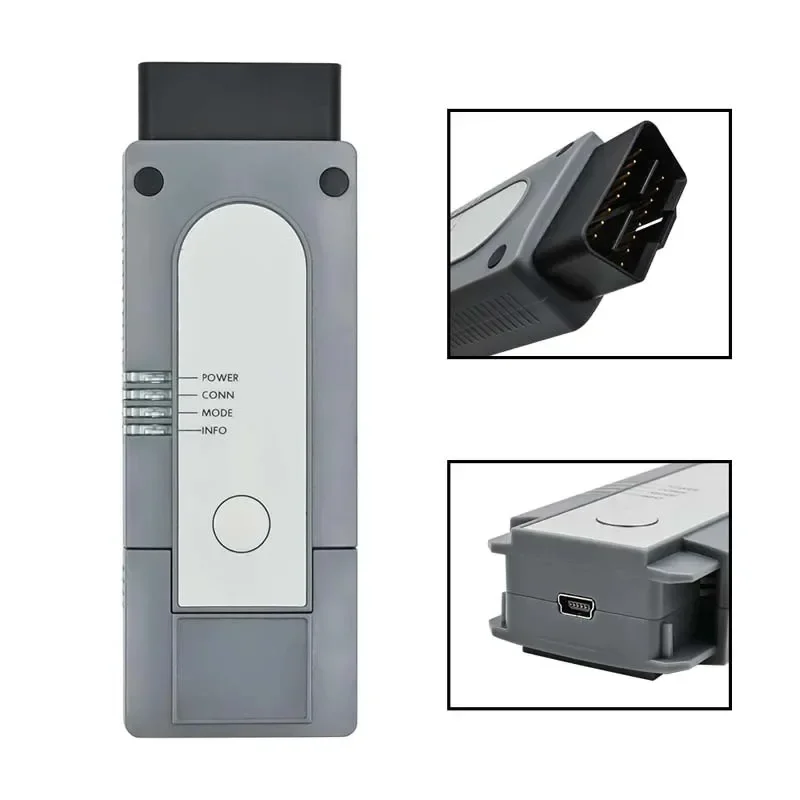

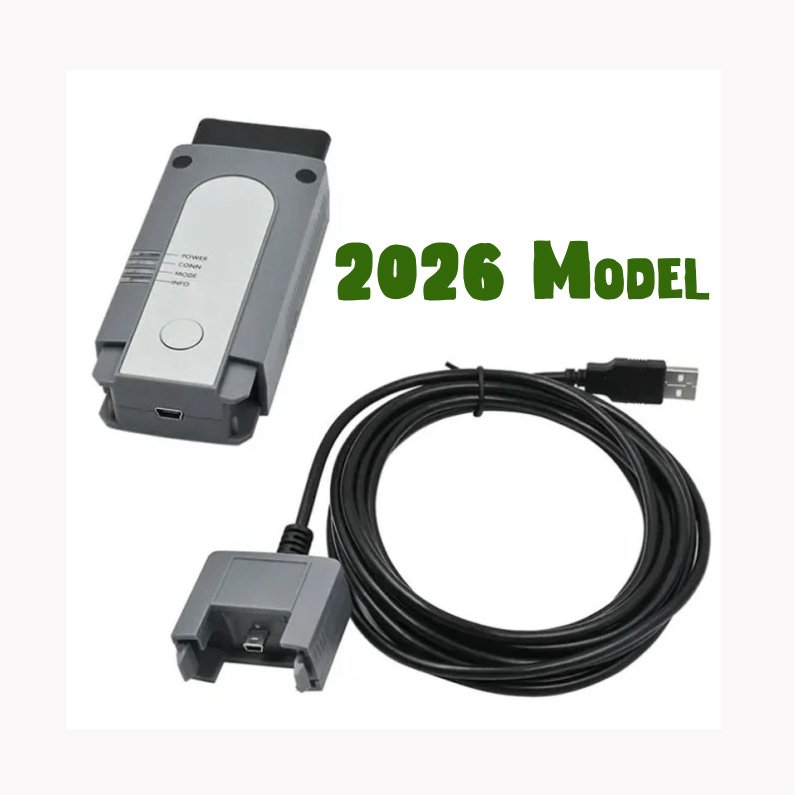

VAS 6154 with OKI Chip VAG Diagnostic Tool + Odis S 23 + Odis Engineering 17v


VAS 6154 is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers. The integrated interface connects the vehicle with a notebook, desktop PC or test system.



VAS 6154 USB/Wifi with OKI Chip Multi-language VAG Diagnostic Tool for Odis S. 23v and Odis E. 17


If you are a UK customer, we will ship your product using 1st class Royal Mail service from the UK (You will not pay any custom fees).

If you buy this product from one of the European Union countries, we will ship it by DHL from the European Union territory (You will not pay any custom fees)

If you live outside EU or UK then we will send you a parcel via Royal Mail International Tracked & Signed service. You can read more about this service  here: https://www.royalmail.com/sending/international/international-tracked-signed

We will not send any parcels from China and we don’t speak Chinese. We are UK/UE based company.


It comes with  VAG Odis S.23 and Odis Engineering 17

+ Very easy to follow Video instruction.

Link to the newest Odis Engineering 17: Click Here

Supported Car models: (2005 – 2023) VW, AUDI, SKODA,  SEAT, Bentley and Lamborghini

Support Coding: This hardware supports online coding. You need to login to your online Geko account. If you don’t have it then you can purchase hourly/daily access to GEKO account (for more details please contact us).


  1.  Estimated remaining times are shown for ECU flash operations.

  2.  Diagnostic protocol contains interruptions of GFF sessions, extended measurement values, improved ECU communication view,used diagnostic hardware, connection type of diagnostic hardware, operating system, the hotfix used and submissions of support requests

  3.  The measured value display has been improved.

  4.  Documents in GFF are displayed in separate windows.

  5.  One message box will be shown at the beginning of the test drive mode.

  6.  GFF hotfixes can be integrated during diagnostic sessions.

  7.  Danger messages have been revised.

  8.  Stopping of diagnostic sessions may be interrupted.

  9.  Automatic deletion of autosave diagnostic protocols after successful transmission.

  10.  Selection of PassThru diagnostic hardware has been improved.

  11.  Service Software update has been stabilized.

ODIS System Core Advantage: Realizing higher quality and lower cost on repair through high-efficiency diagnosis process! The GFF database guided by centralized management posts fault information and solution directly. A full range of integration from developing to after sale service makes procedure basis reliable. The integration of diagnostic system (eg : Elsa pro) further enhances the core processes of service. Systematically optimizes technician’s diagnostic procedure and saves their time cost. The optimization of diagnostic procedure makes the distributor’s cost reasonable.

VAS 6154 + ODIS Service 23 + Odis E. 17 Computer Windows System Requirements: Windows System:   Windows 10/11 (Pro or higher)

C:// need to have at least 30GB space for installing the software
We send a link to our server from where you can download ODIS S 23 and Odis E. 17 software and all the future updates.

Specification: The vehicle protocols are handled directly in the VAS6154. This ensures fast response times and a reliable real time behavior independently of the PC operating system. Every time a connection is established, the VAS 6154 software is identified with the version installed on the application PC. The VAS 6154 thus automatically adopts any new features provided after a new software version has been installed on the application PC. The diagnostic application and the associated Diagnostic Base System are installed on the application PC. The diagnostic base system can access the VAS 6154 via USB and Wifi.

Access via USB: You can also connect the 6154 to the application PC by using the supplied USB cable. Windows detects the VAS 6154 through Plug and Play, and automatically installs the drivers copied when you installed thediagnostic application. Setup of the VAS 6154 is then complete and the device is ready for use by the diagnostic application.

The following vehicle bus systems are supported: K line (ISO9141-2) High-speed CAN (ISO 11898-2) Low-speed CAN (ISO 11898-3) J1850 (SAE J1850)

Package include:

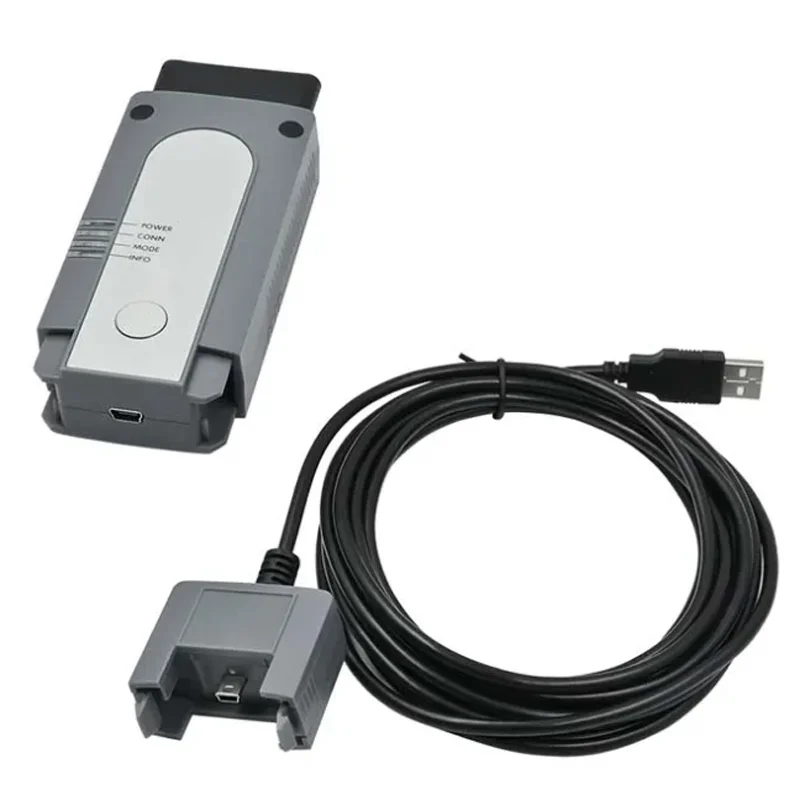

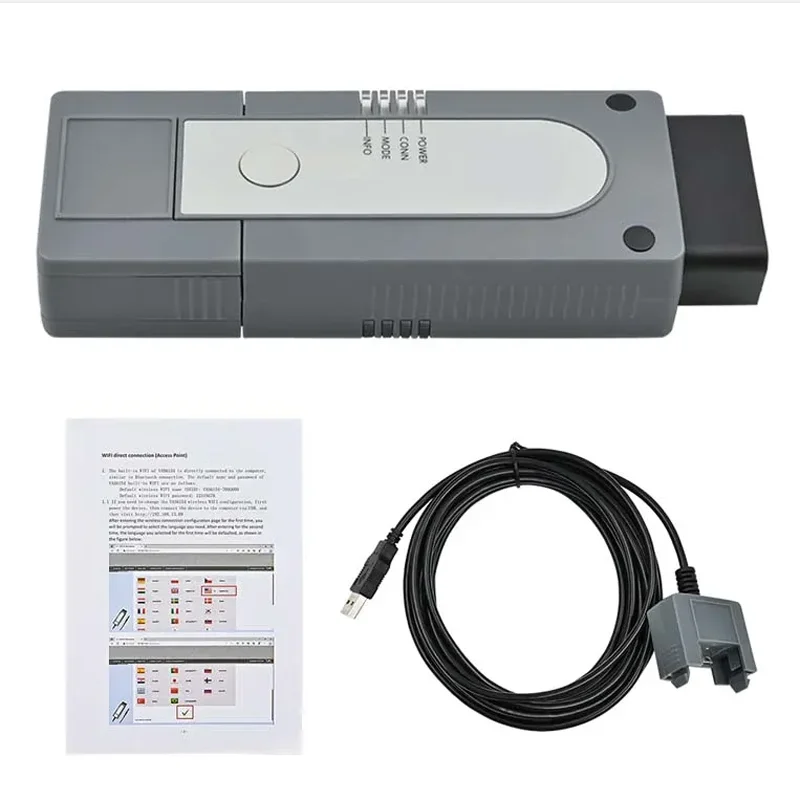

1pc x VAS6154 Main unit
1pc x USB Cable
1 x link to Odis Service 23 Software (Odis service 23)
1 x link to Odis E. 12.2  Software (Odis Engineering 17)
