Haynes Pro Workshop Database – Repair Data and Wiring Diagrams (Online Access)

Description

Everything a garage needs to repair and service modern cars and vans, in one searchable database.

Pick the make, model and engine variant, then go straight to the job: repair procedure, wiring diagram, labour time, service schedule or diagnostic case. Choose 1 month, 6 months or 1 year of online access below.

Delivery time: 24 to 48 hours during working day

What is inside

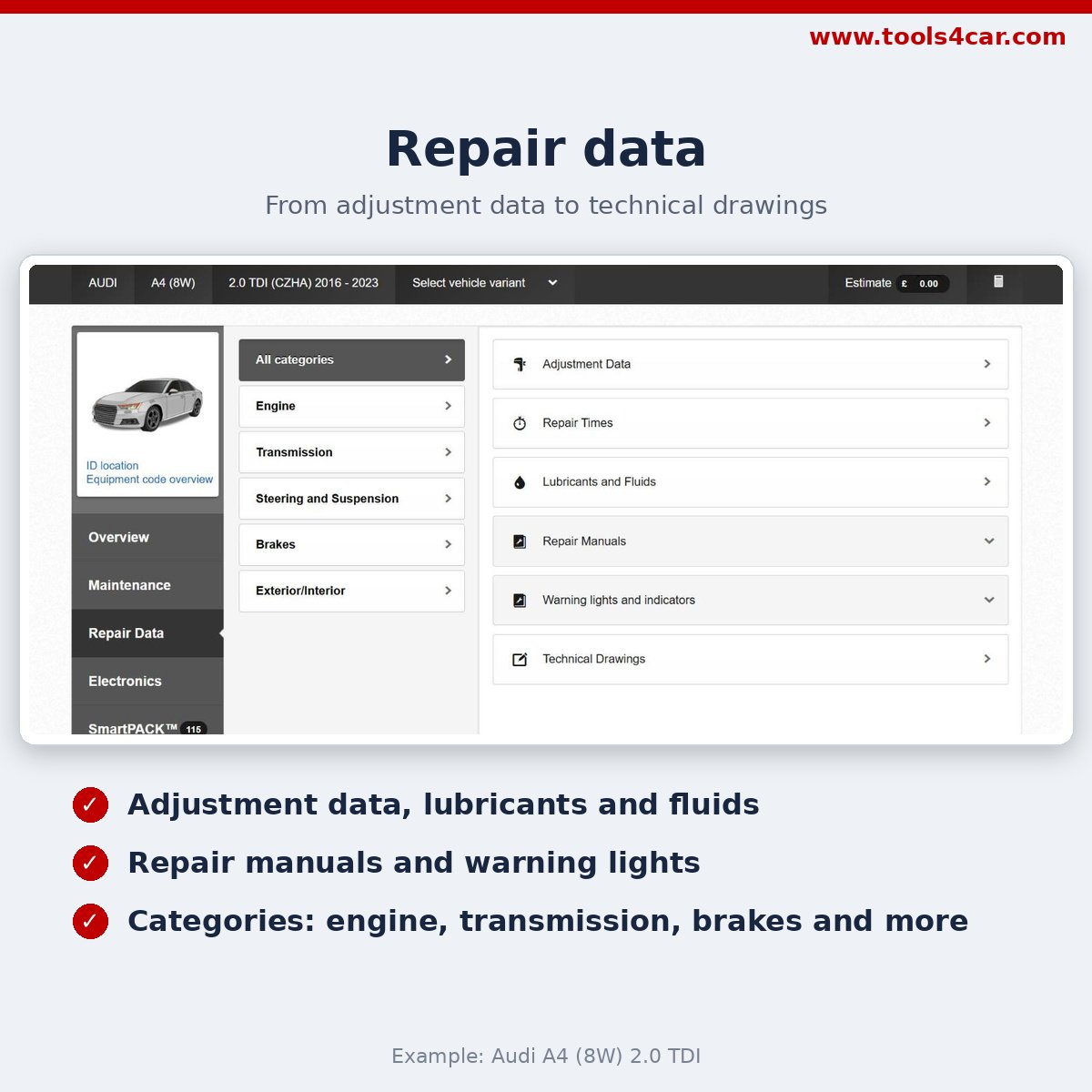

• Repair data: adjustment data, repair times, lubricants and fluids, repair manuals, warning lights and technical drawings, sorted by engine, transmission, steering and suspension, brakes and exterior/interior.

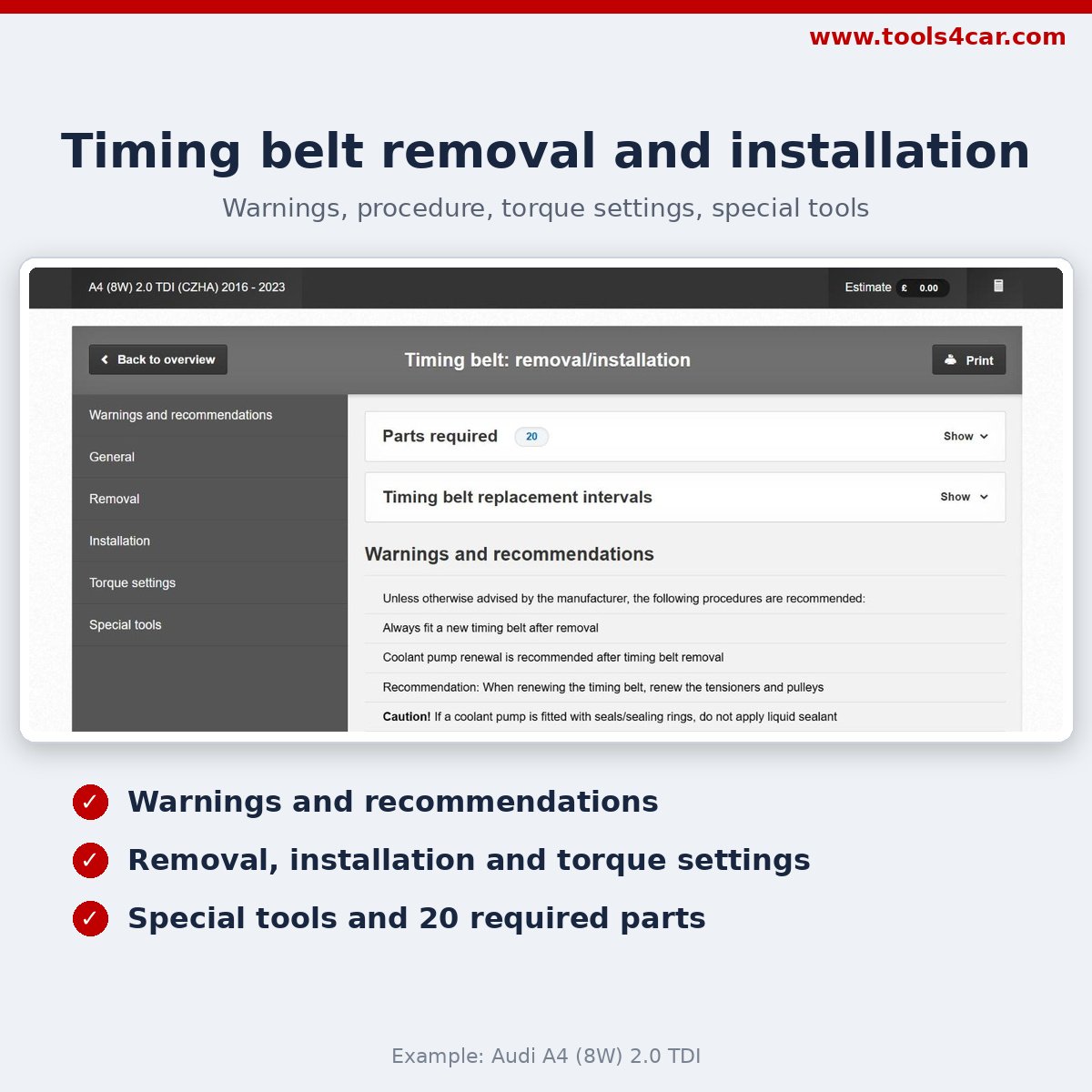

• Repair procedures with warnings, removal and installation steps, torque settings, special tools and parts lists (for example timing belt replacement).

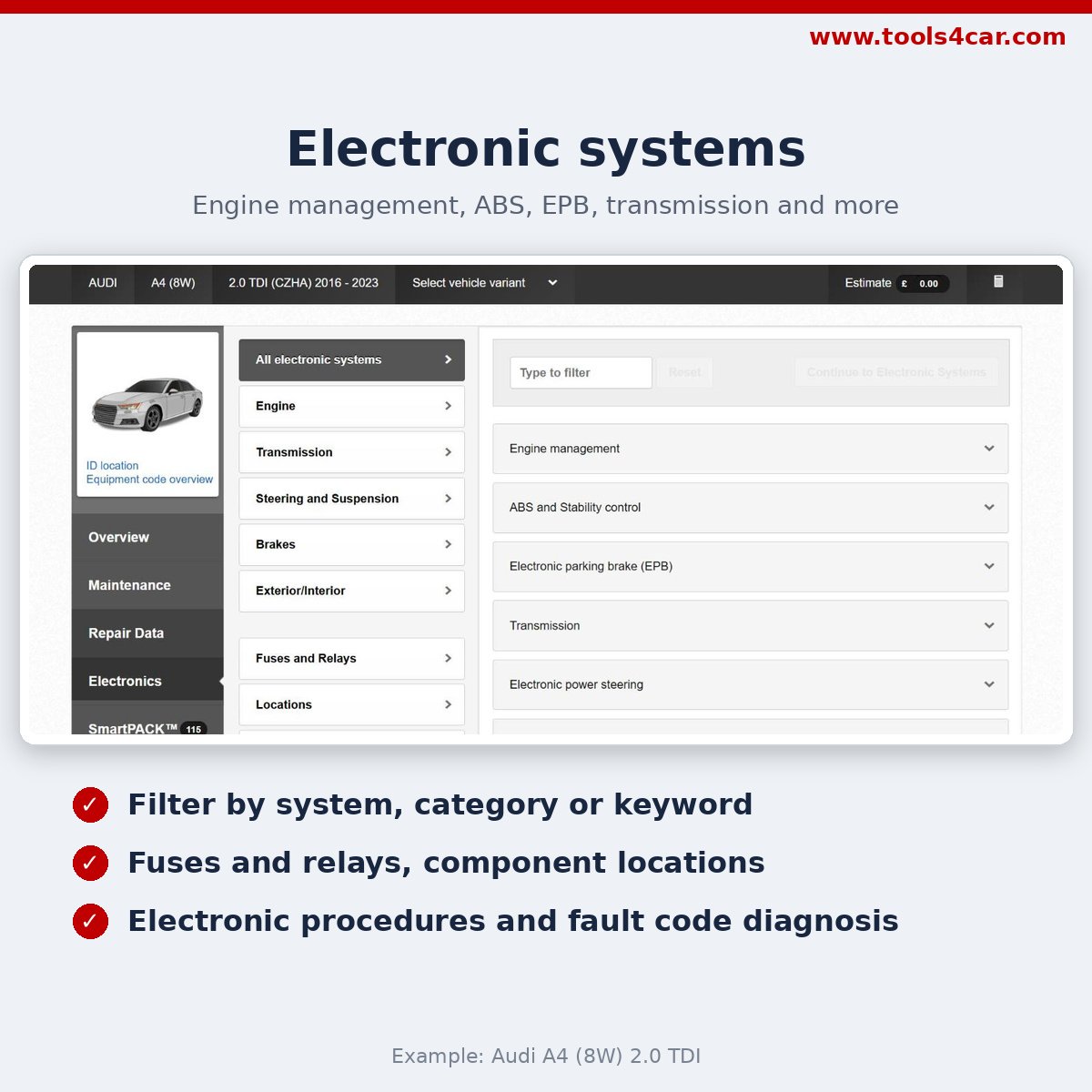

• Electronic systems: engine management, ABS and stability control, electronic parking brake, transmission, power steering and more, with CAN-bus overview, fuses and relays, component locations and electronic procedures.

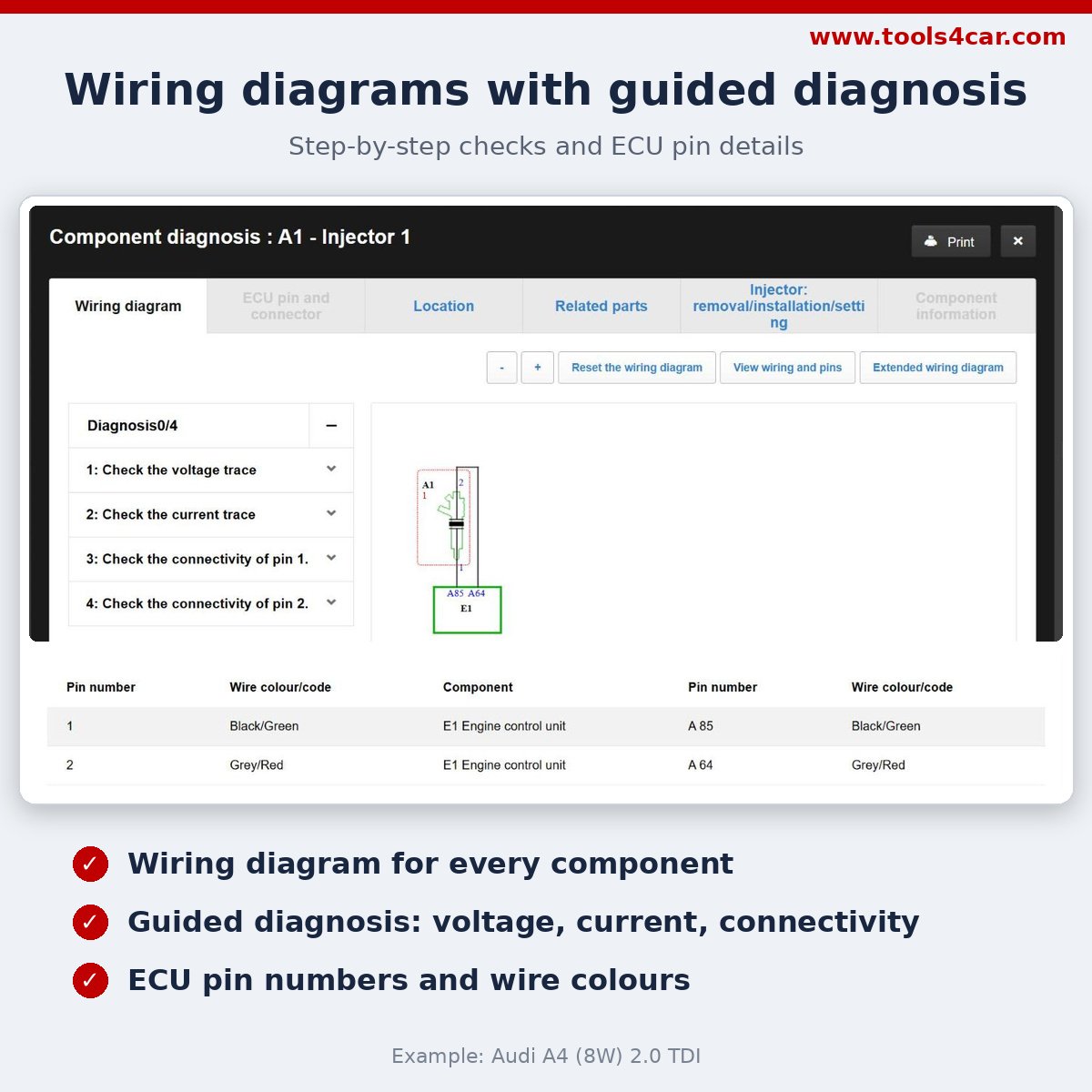

• Wiring diagrams with guided diagnosis: step-by-step voltage, current and connectivity checks, ECU pin and connector details and wire colours.

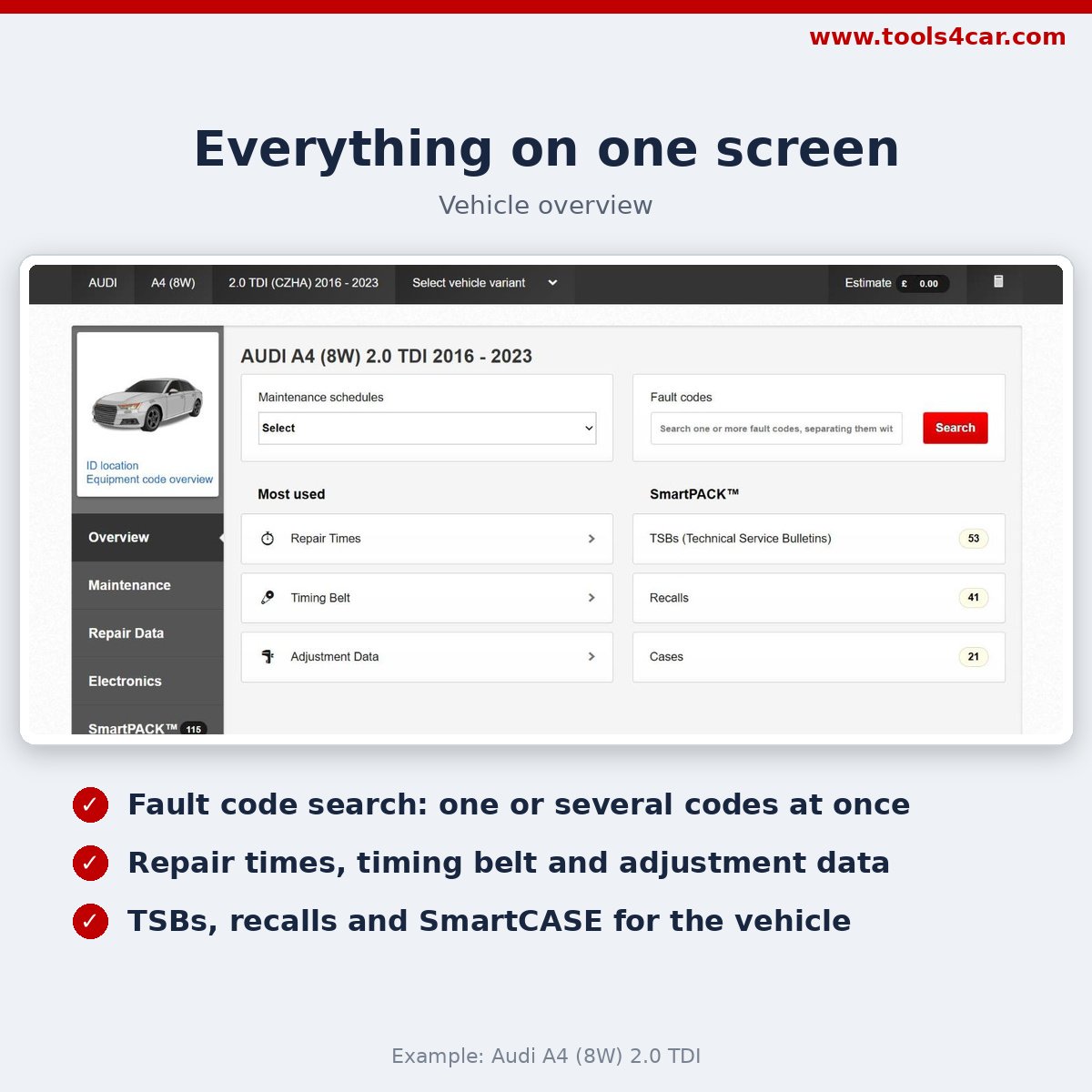

• Fault code search: enter one or more codes at once.

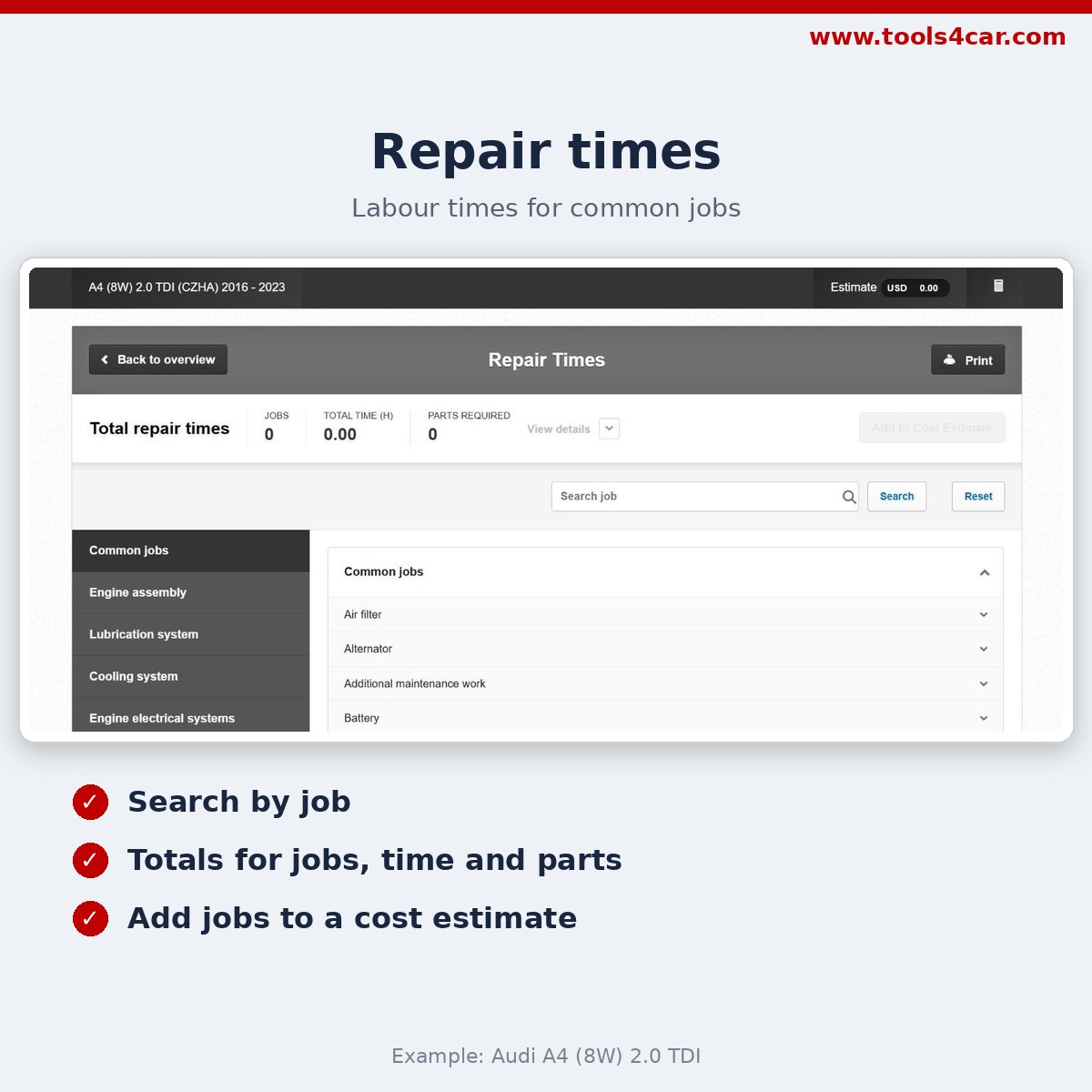

• Repair times for common jobs, with job search and cost estimates for your customers.

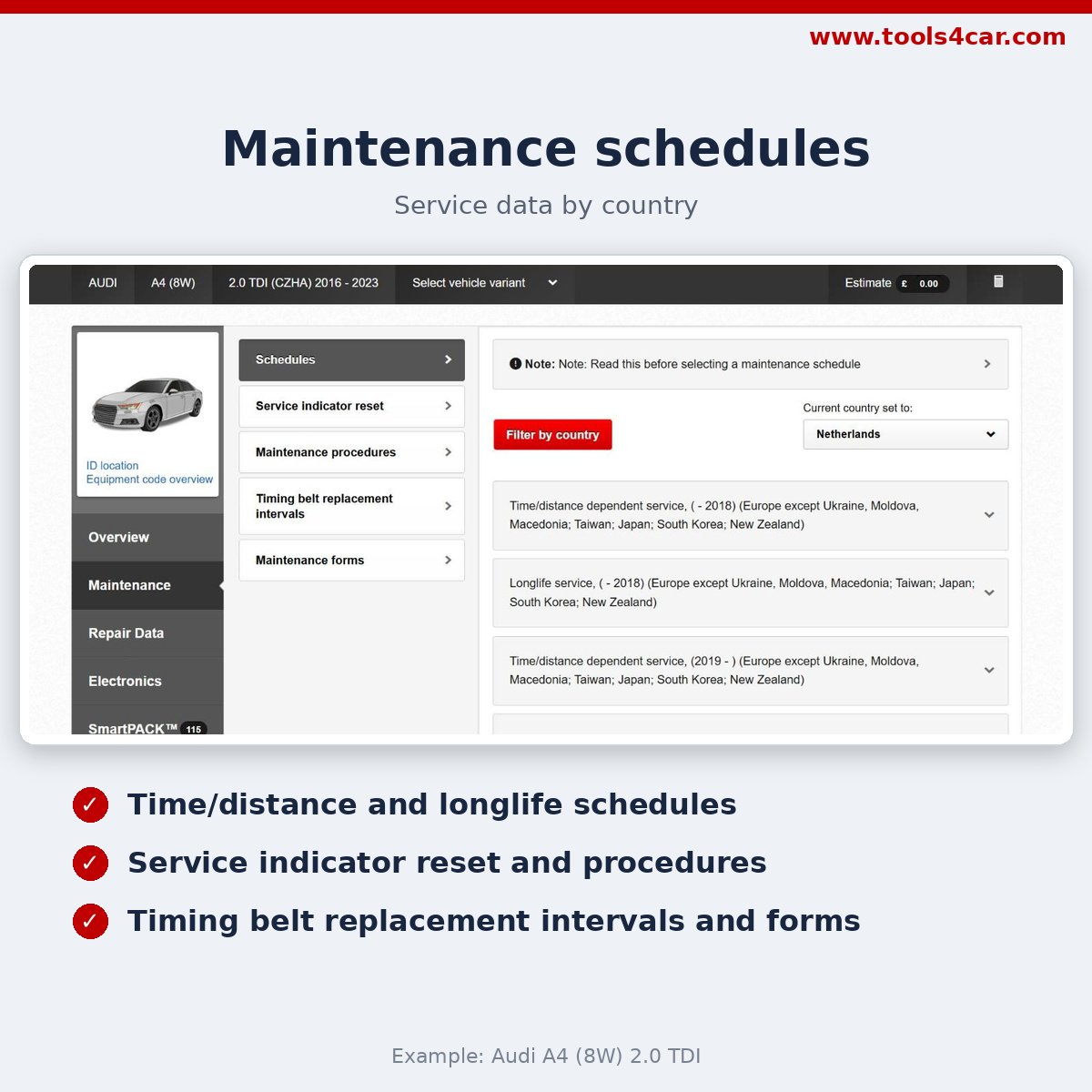

• Maintenance: service schedules by country (time/distance and longlife), service indicator reset, maintenance procedures, timing belt replacement intervals and maintenance forms.

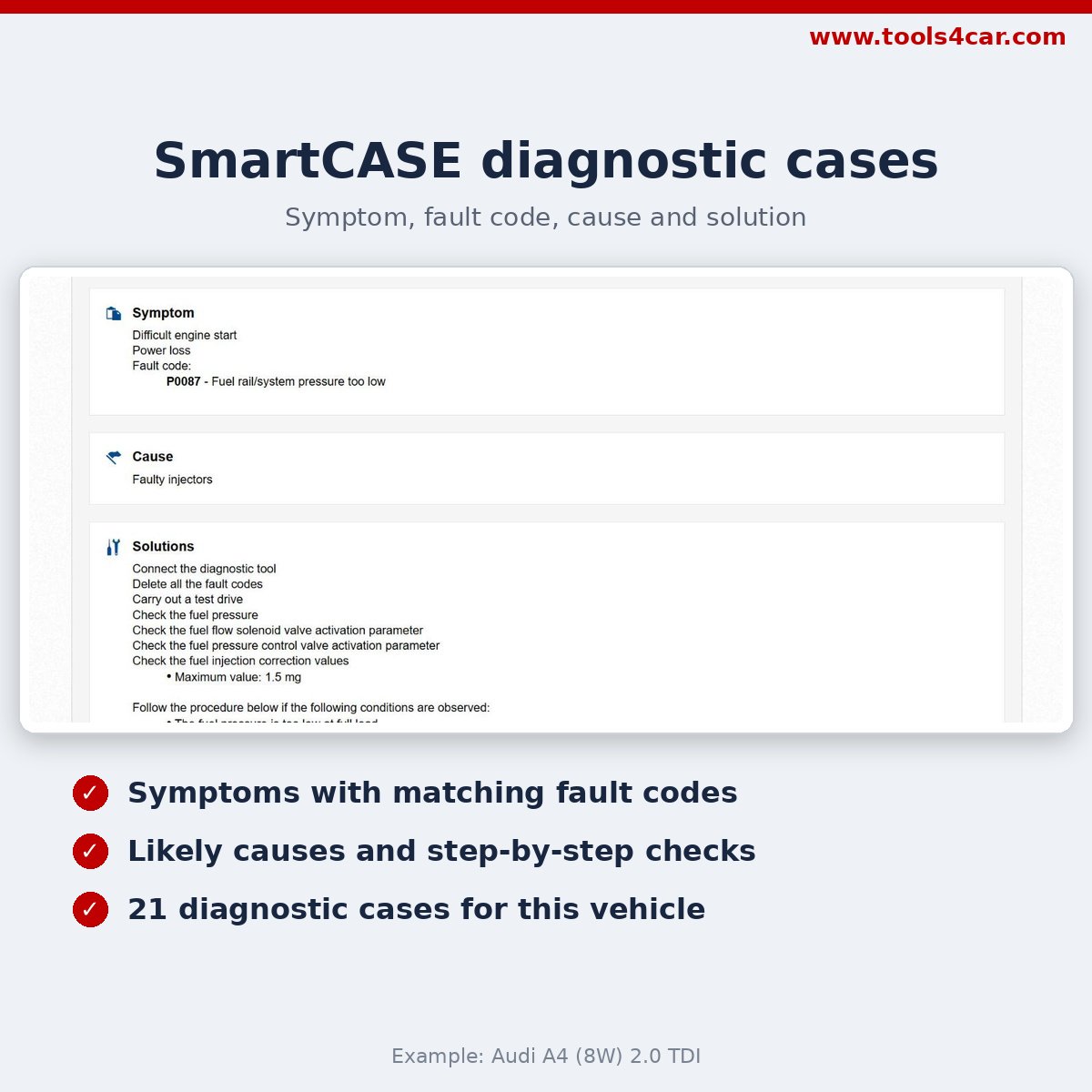

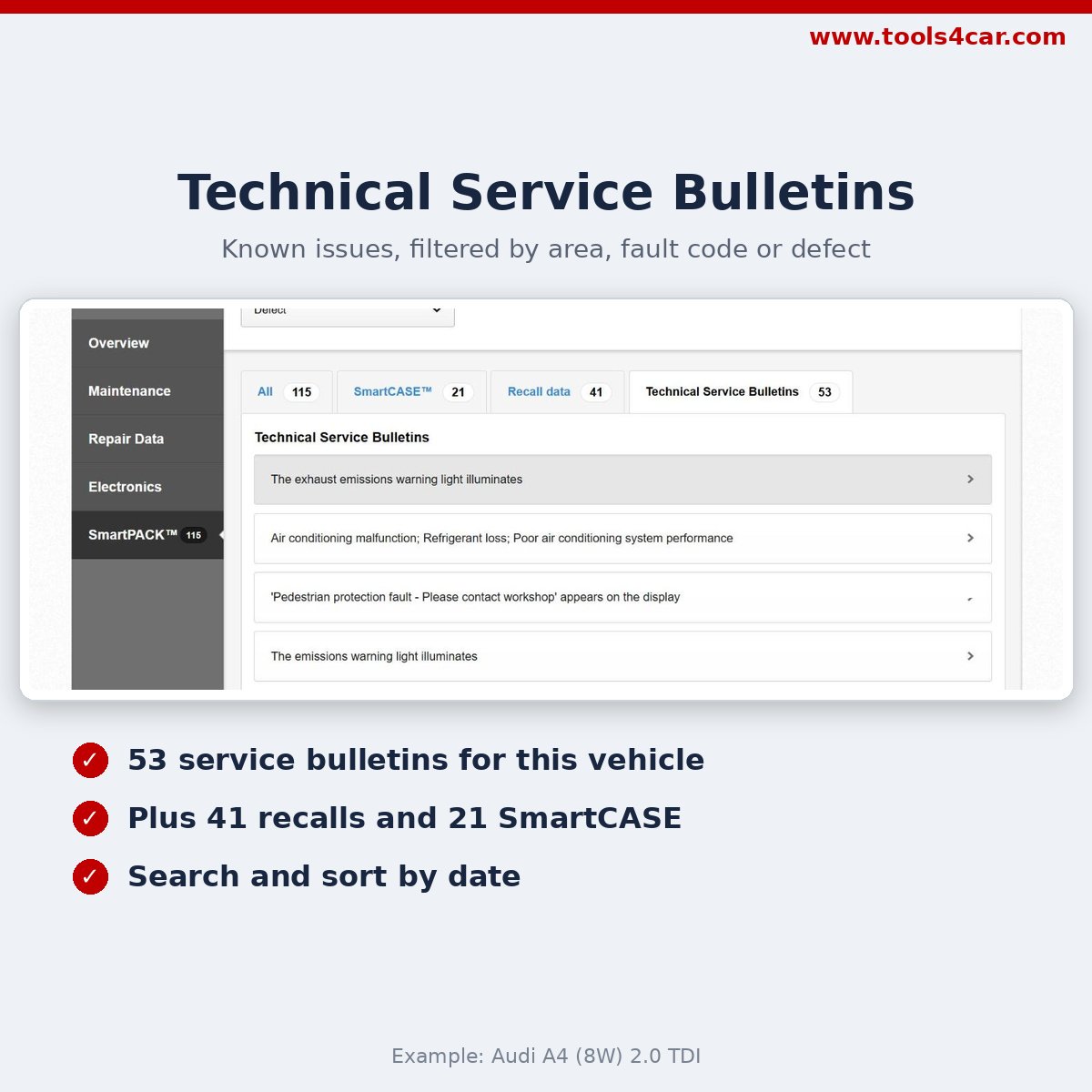

• SmartPACK: SmartCASE diagnostic cases (symptom, fault code, cause and step-by-step solution), Technical Service Bulletins (TSBs) and recall data for the selected vehicle. For example, the Audi A4 (8W) 2.0 TDI has 21 SmartCASE cases, 53 TSBs and 41 recalls.
• Vehicle identification: ID location, equipment code overview, jacking points and diagnostic connector location for many models.

Coverage

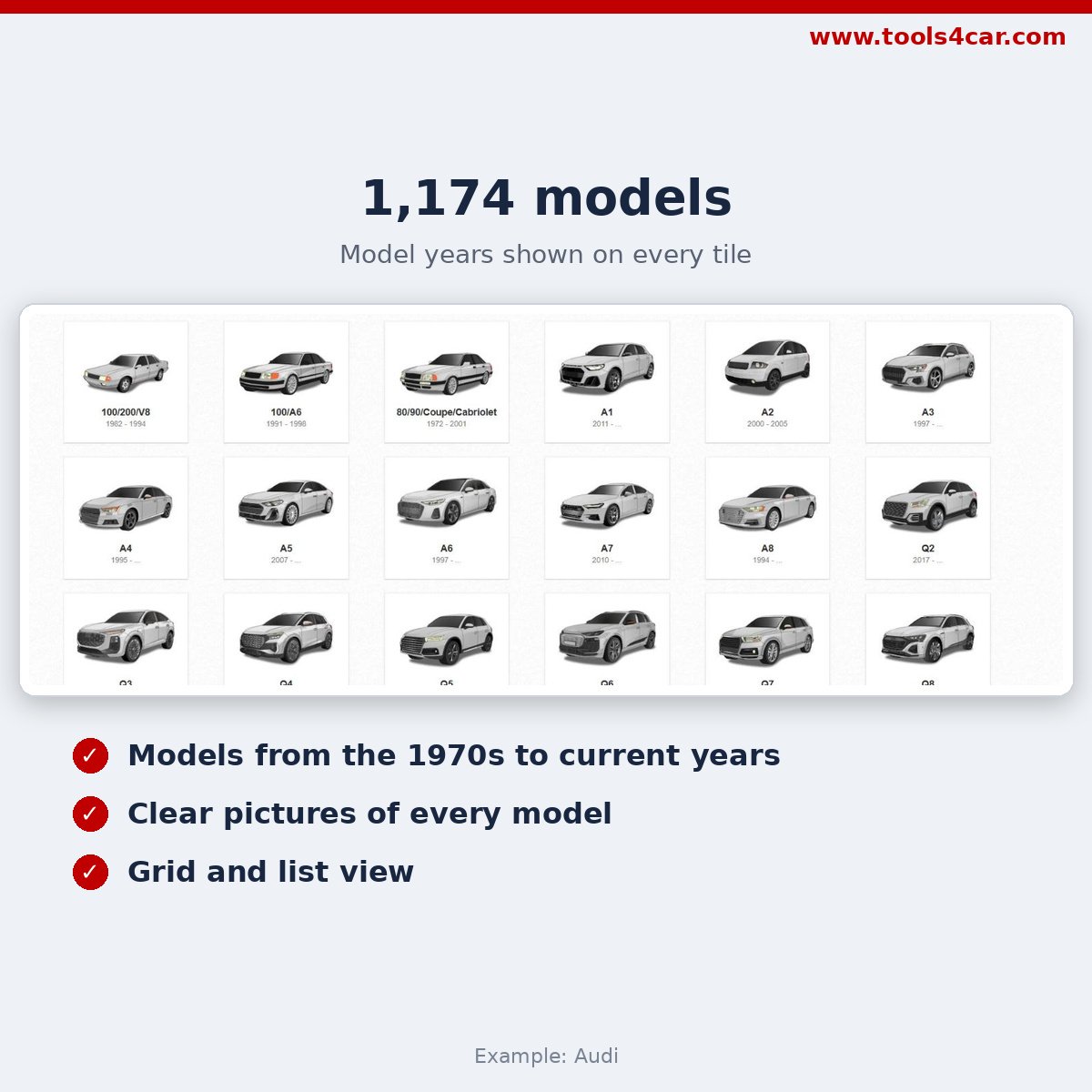

• 95 makes of cars and vans (1,174 models), from Abarth, Alfa Romeo, Audi, BMW, Ford, Mercedes-Benz and Toyota to Tesla, BYD, Polestar and Zeekr.

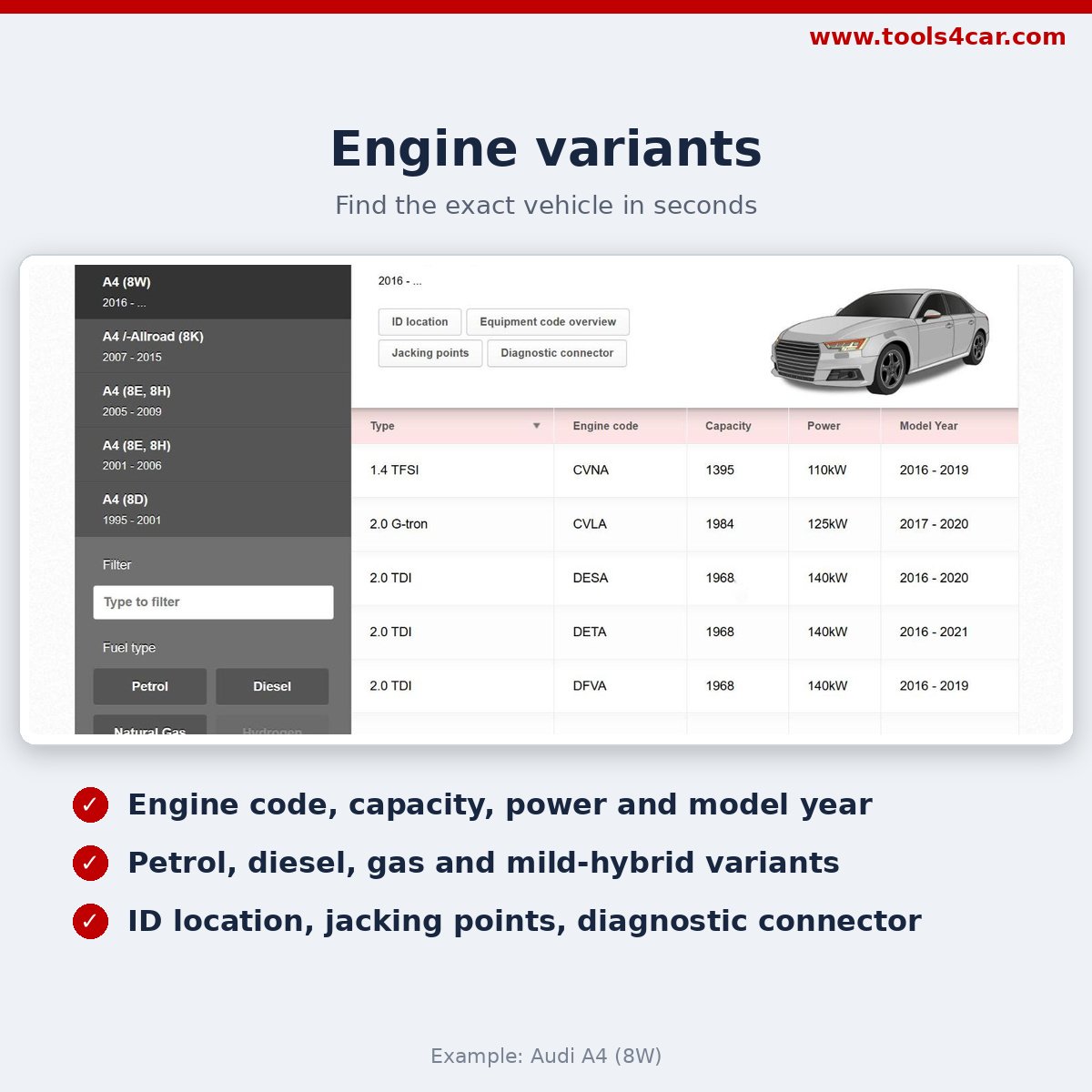

• From classic models to current model years. Engine variants are listed by engine code, capacity, power and model year.
• The amount of data differs between vehicles.
• Heavy trucks, trailers and axles are not included.

List of compatible vehicles

See every supported make, model and year range (1,174 car and van models from 95 makes):

Download the list of compatible vehicles (PDF)
Download the list of compatible vehicles (Excel)

Choose your access period

• 1 month: for a single job or a short project
• 6 months: for a seasonal workload or a growing workshop
• 1 year: best value for daily professional use

Requirements

Works in a modern web browser (for example Google Chrome) with an internet connection.

Good to know

• Digital product delivered electronically after payment. No returns and no warranty. See our Delivery & Returns page.
• SmartCASE information is supplied by qualified automotive professionals and is not based on OEM technical information.
• For professional use. Always follow the vehicle manufacturer’s safety instructions.
• Haynes Pro and WorkshopData are trademarks of their respective owners.
